Walter B Jacobs Nature Center

Case Studies

A new state-of-the art facility for outdoor interpretation and recreation that is helping citizens connect to nature and conservation in northwestern Louisiana.

^
LOCATION

Shreveport, LA

^
BUILDING OWNER

Caddo Parish Commission

^
Architect

Timothy M. Brandon, Architect APC, TBA

^
General Contractor

Lincoln Builders

^
Mechanical Contractor

The Payne Company

^
Consulting Engineer

EMA Engineering and Consulting

^
Daikin Sales Representative

Mechanical Concepts LLC

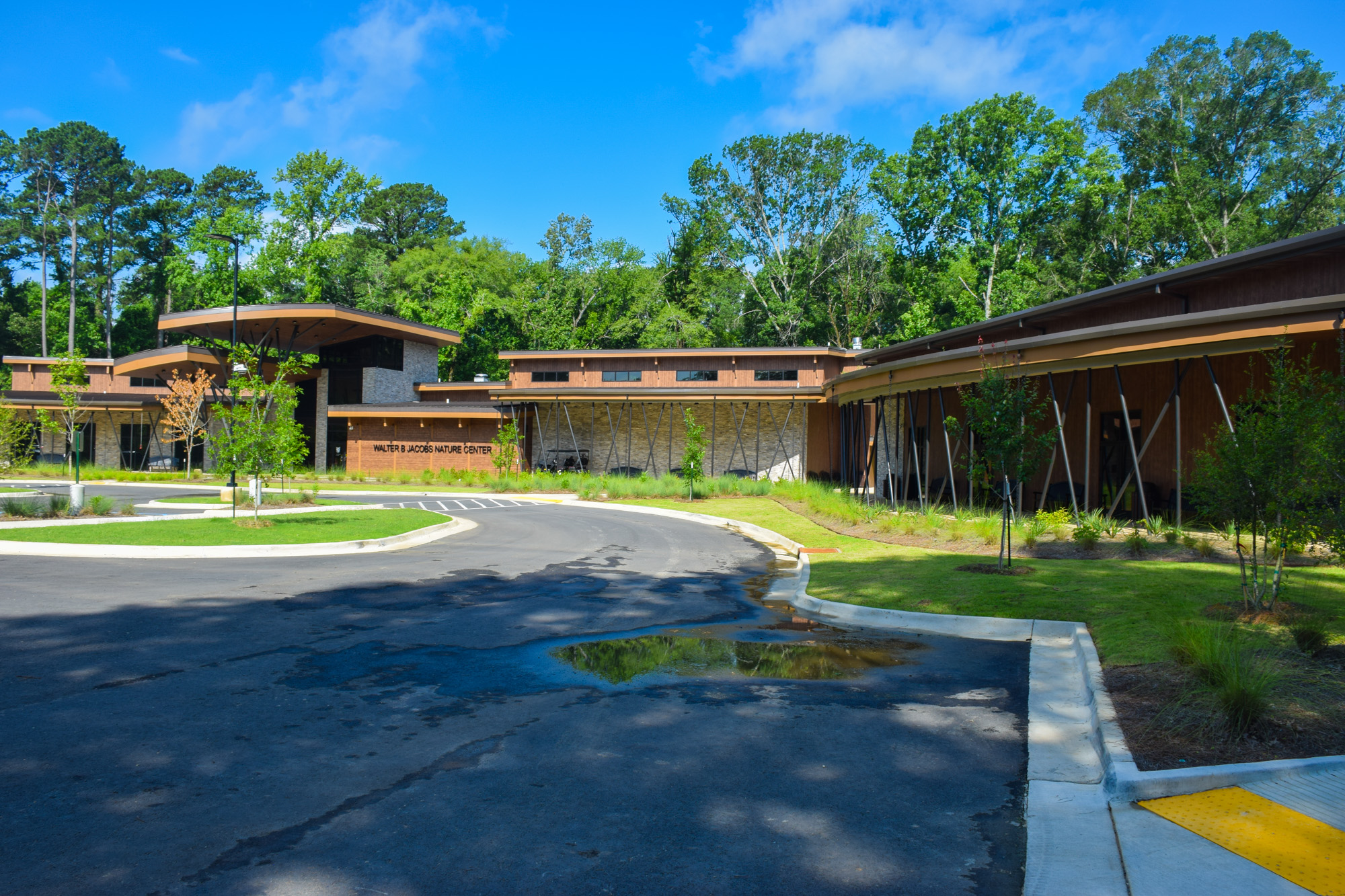

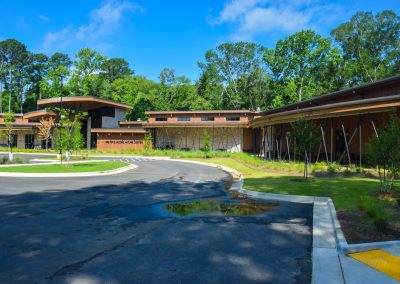

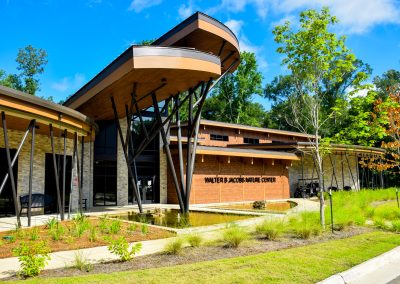

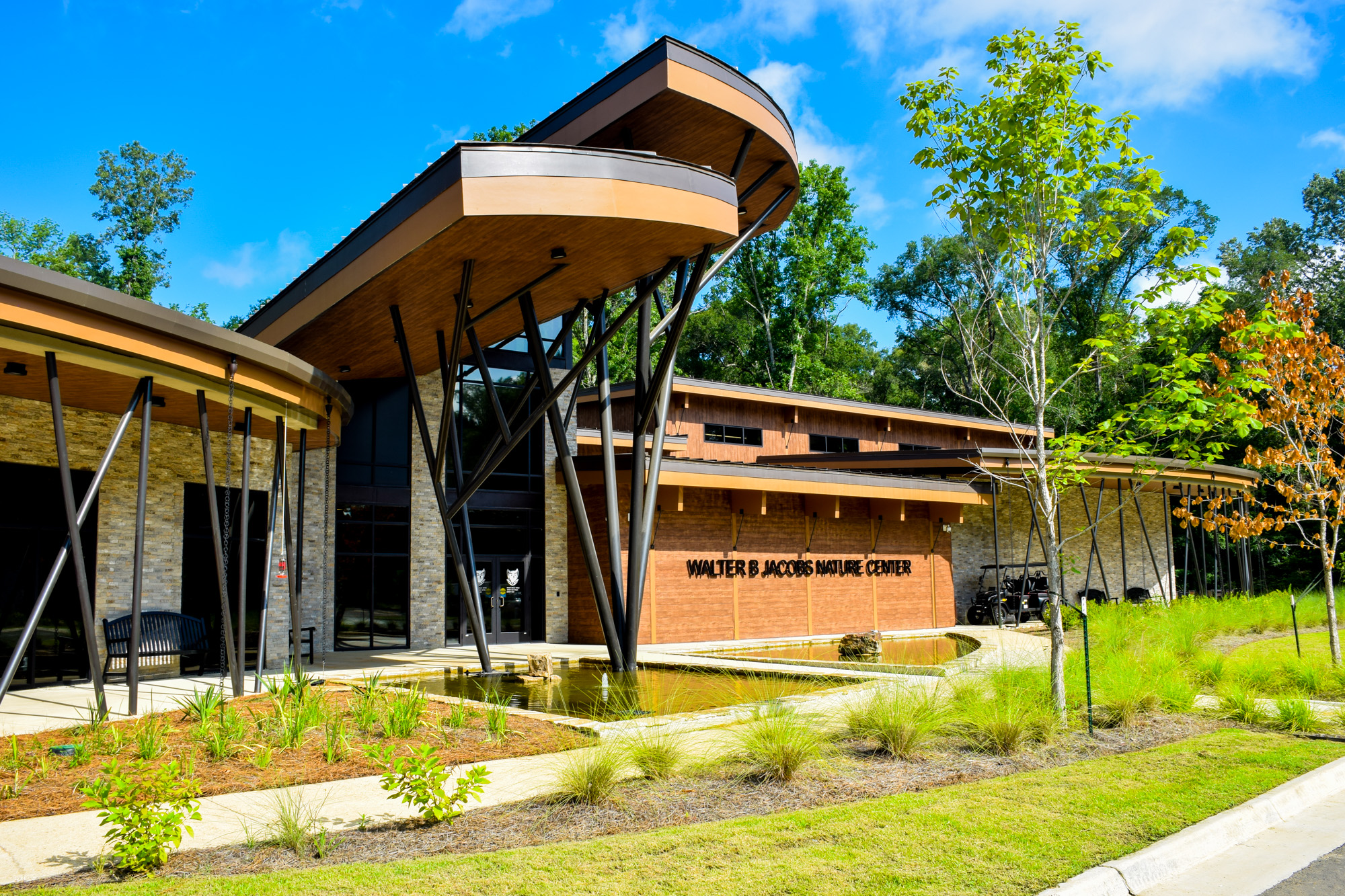

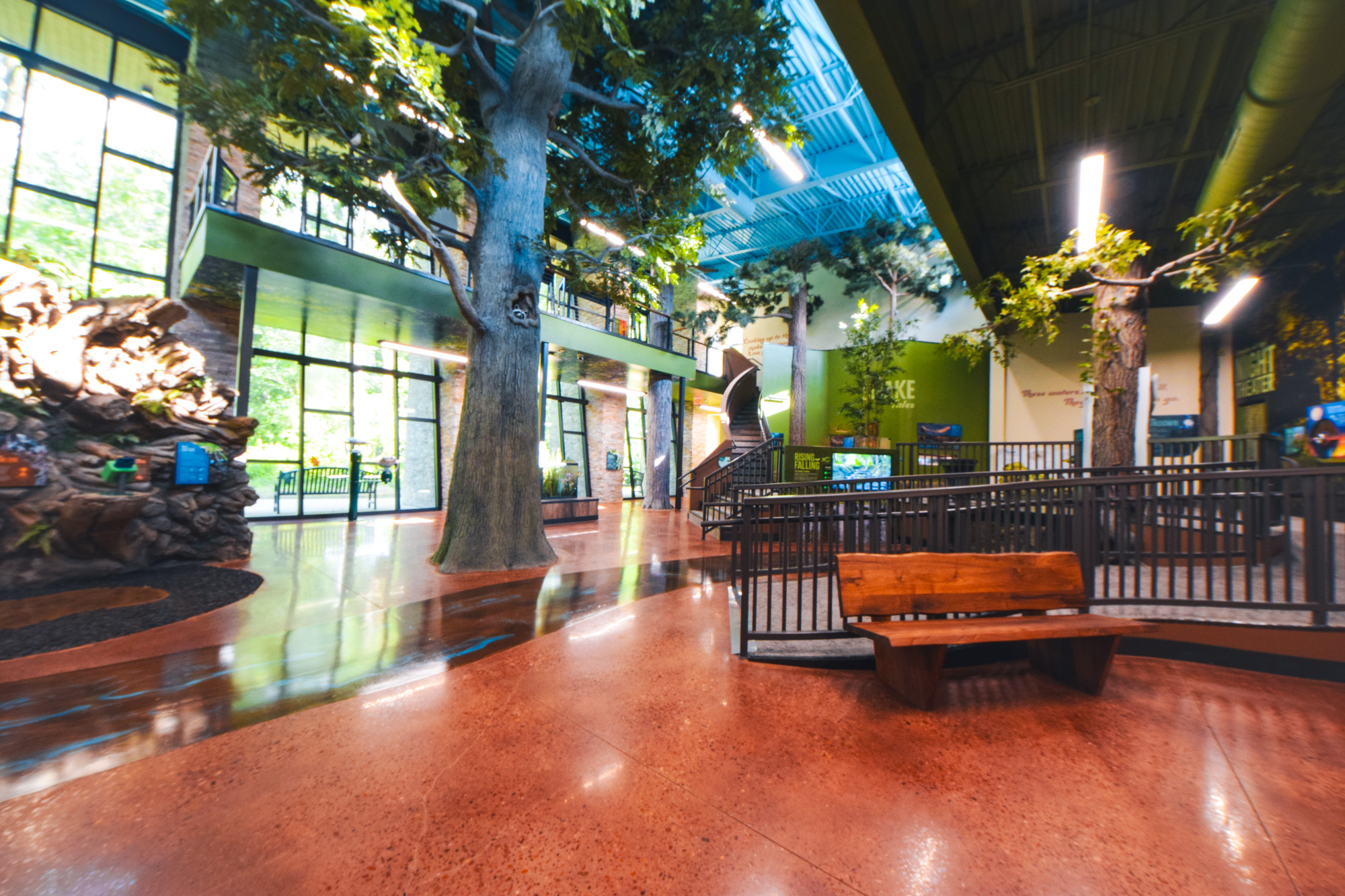

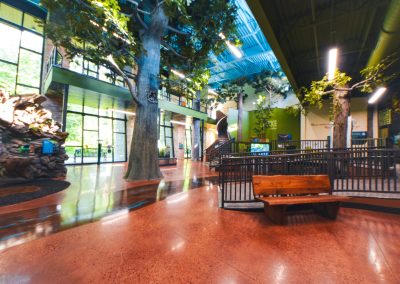

The Walter B Jacobs Memorial Nature Park is located just west of Blanchard and encompasses 160 acres of pine-oak-hickory forest with 5 miles of nature trails. The approximately 13,000 square feet of new facilities include a main building with exhibit and education areas, a multifunction event building with catering kitchen and outdoor space, a bird-of-prey aviary building, and Maintenance shop building.  Additionally, the existing pavilion has been remodeled and updated.

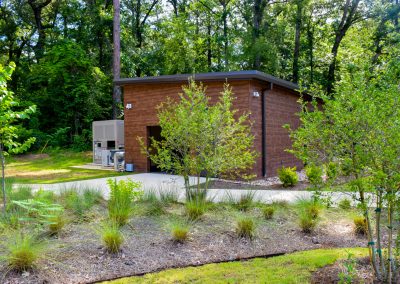

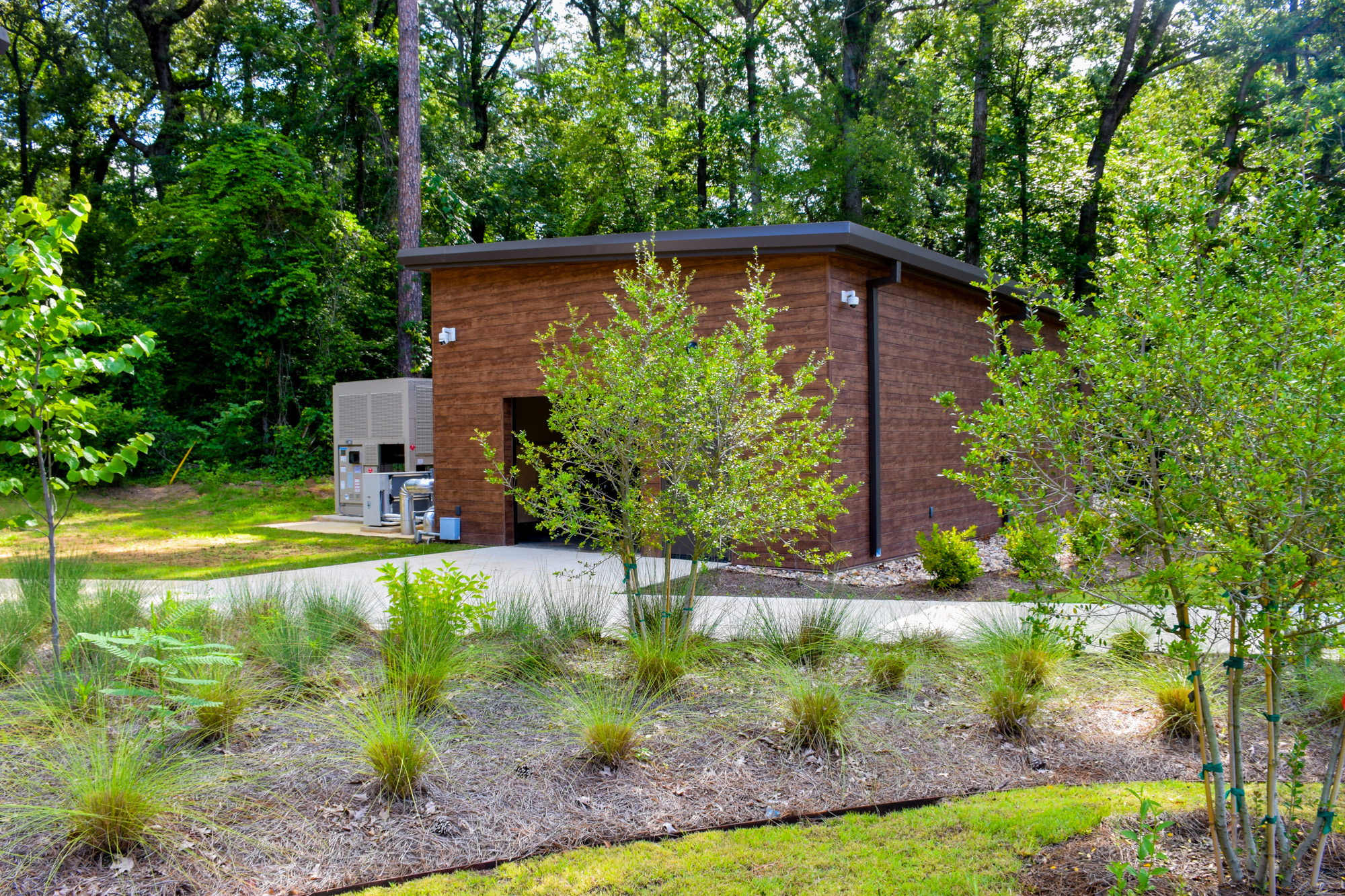

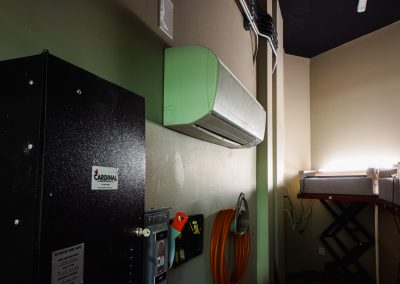

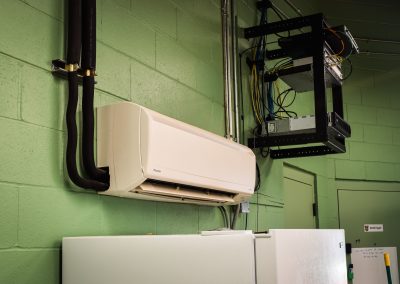

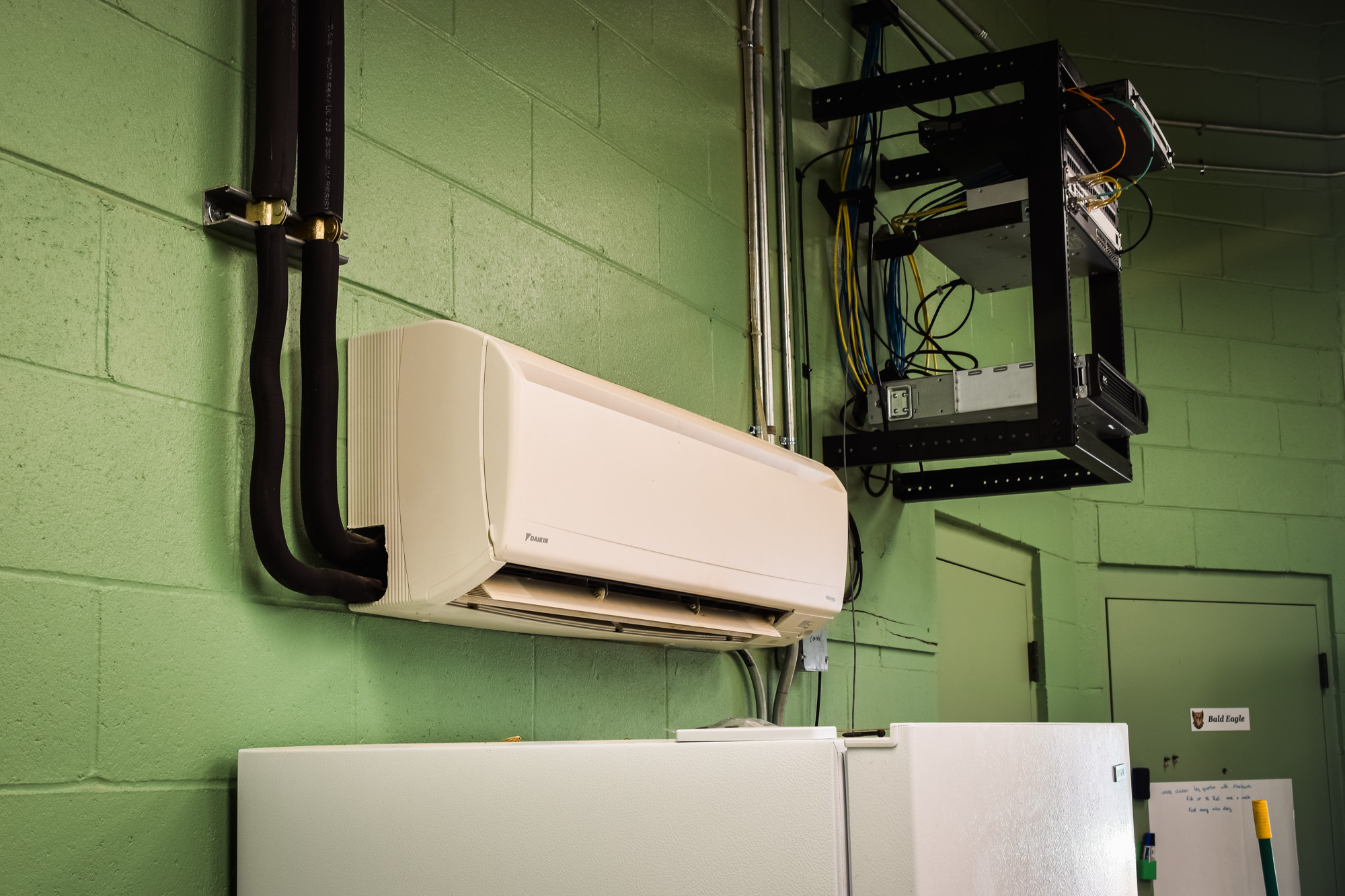

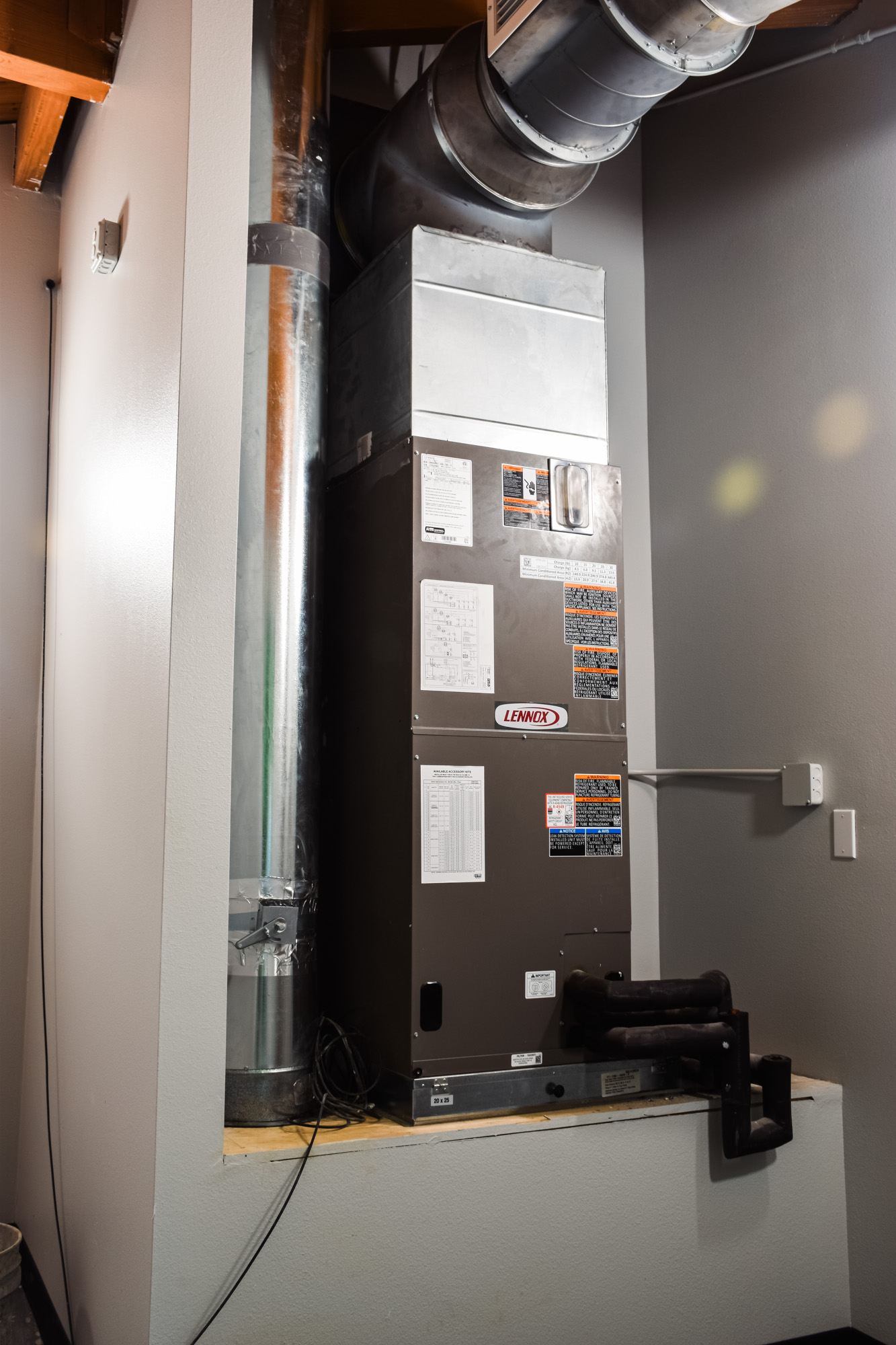

HVAC needs are met in the main building using mezzanine-mounted chilled water air handlers and electric heat VAV air terminal units in the spaces.  The event center also uses chilled water air handlers and electric heat VAV units.  The birds of prey common area and the remodeled pavilion, as well as several dedicated areas in the main and event buildings, are served by minisplit and multisplit systems. The chiller and hydronic systems are housed in the Maintenance shop building.

Equipment

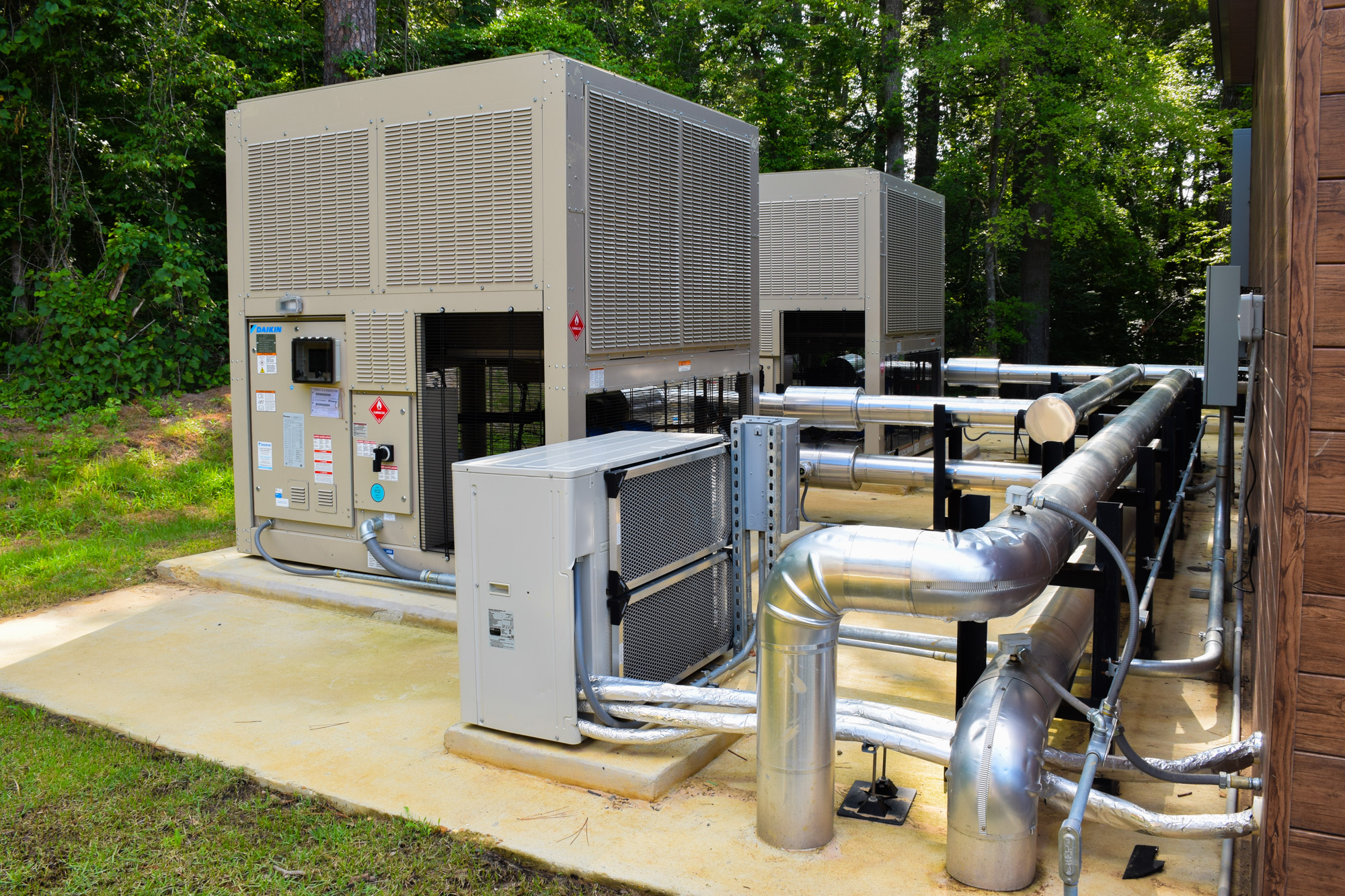

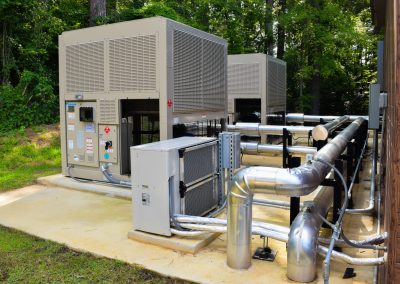

  • Two 50-ton Daikin air-cooled water chillers

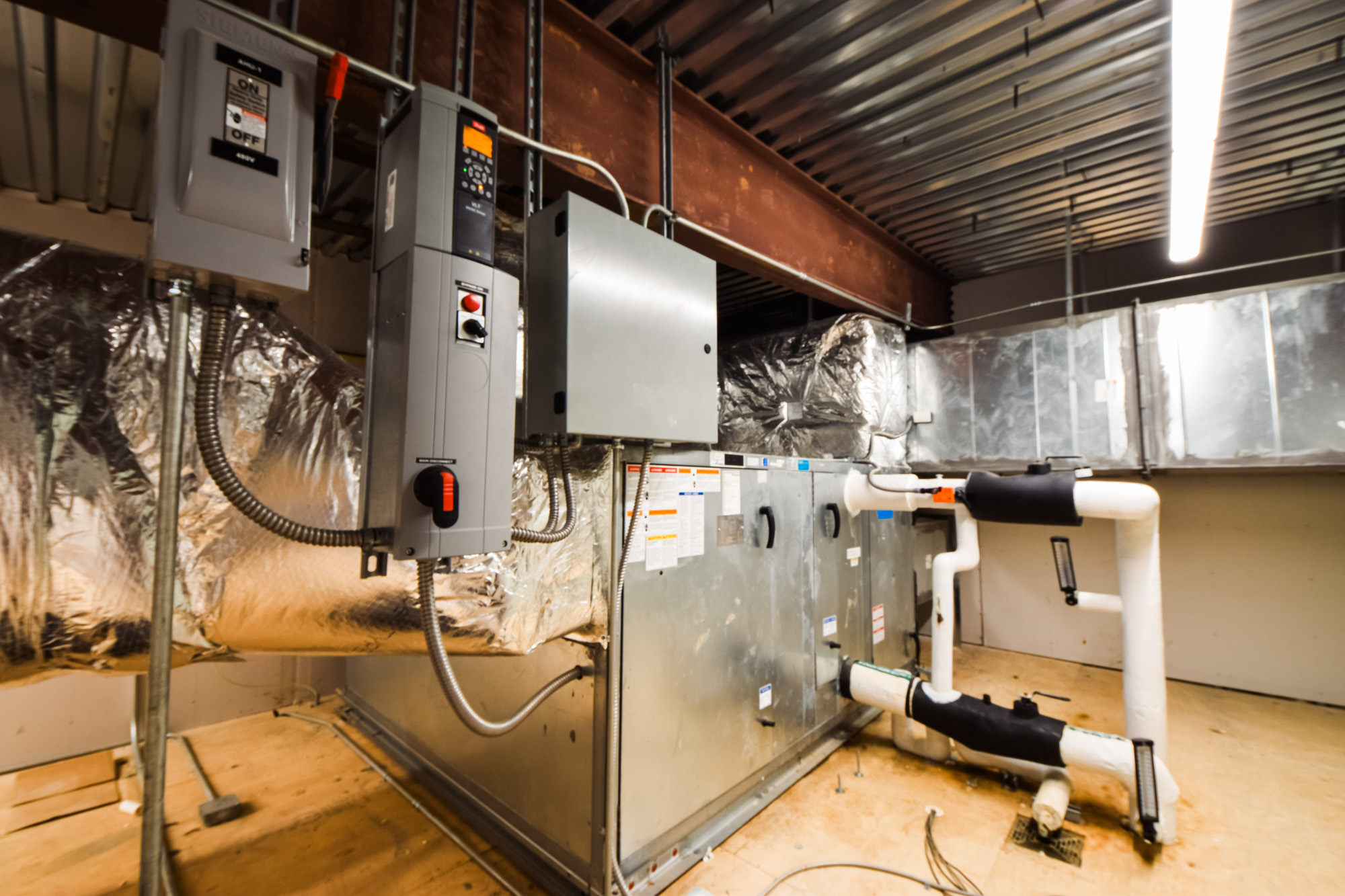

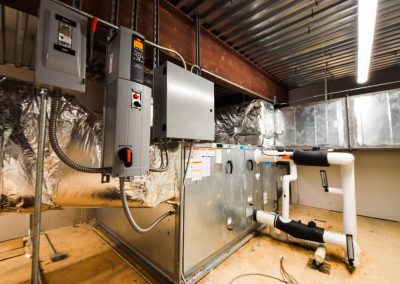

  • Four Daikin Vision chilled water indoor air handling units with Danfoss Variable Frequency Drives
  • 13 Metalaire VAV air terminal units with electric heat

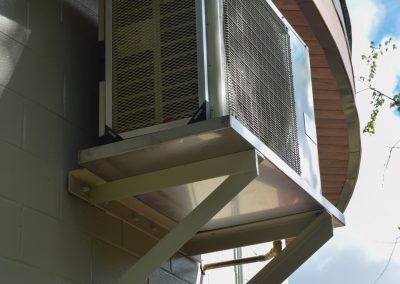

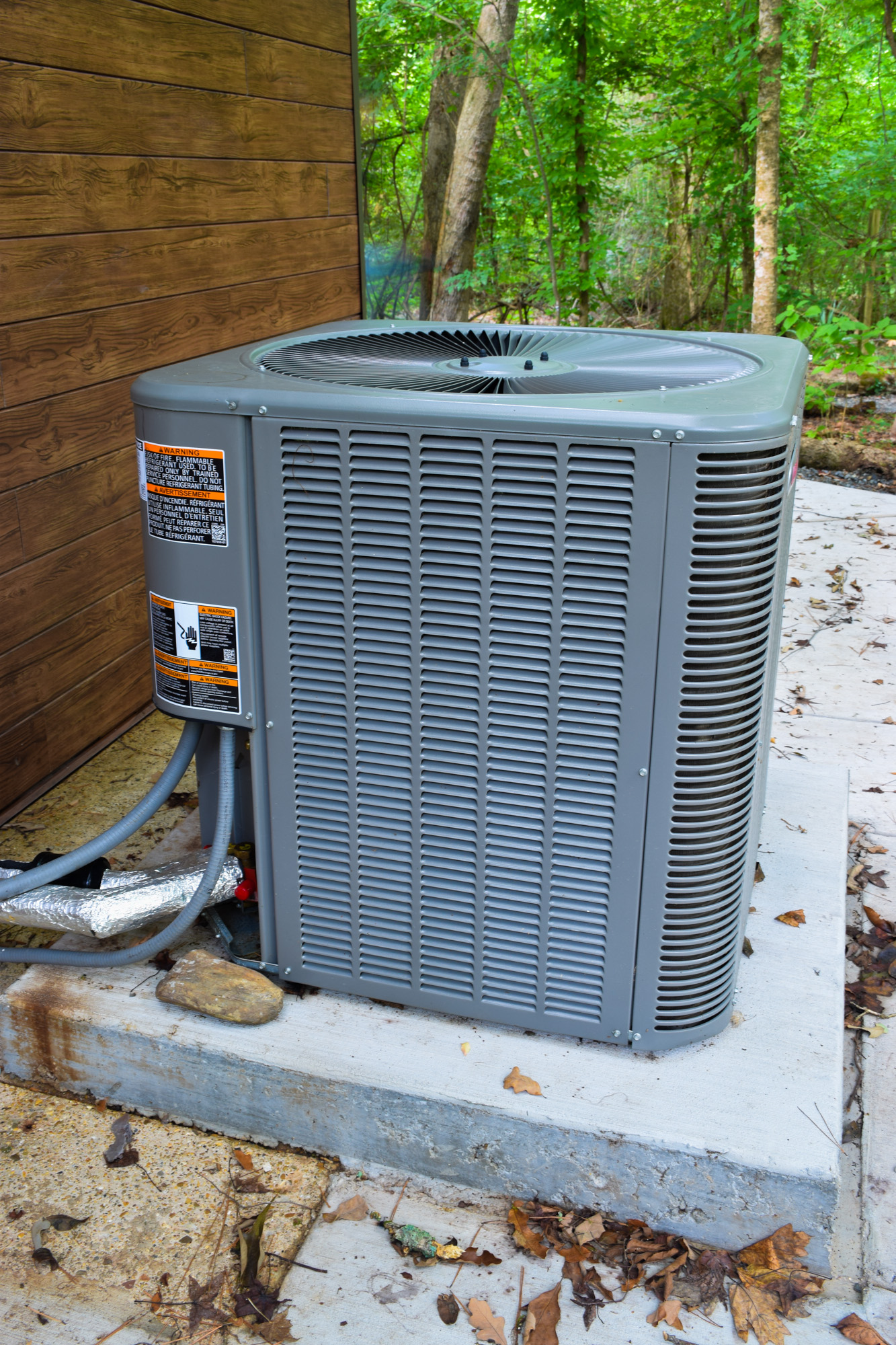

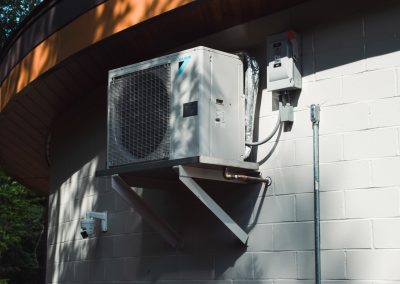

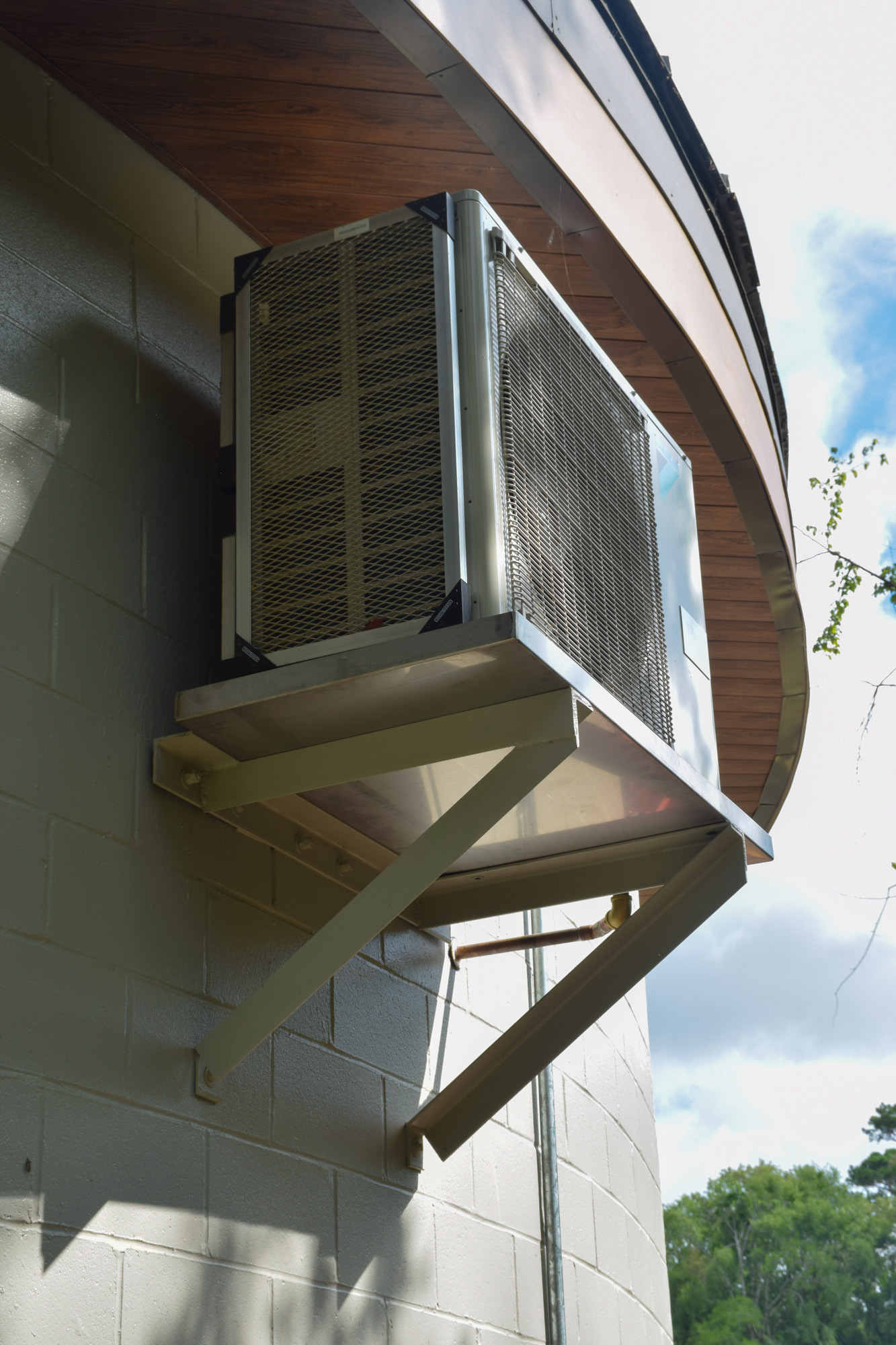

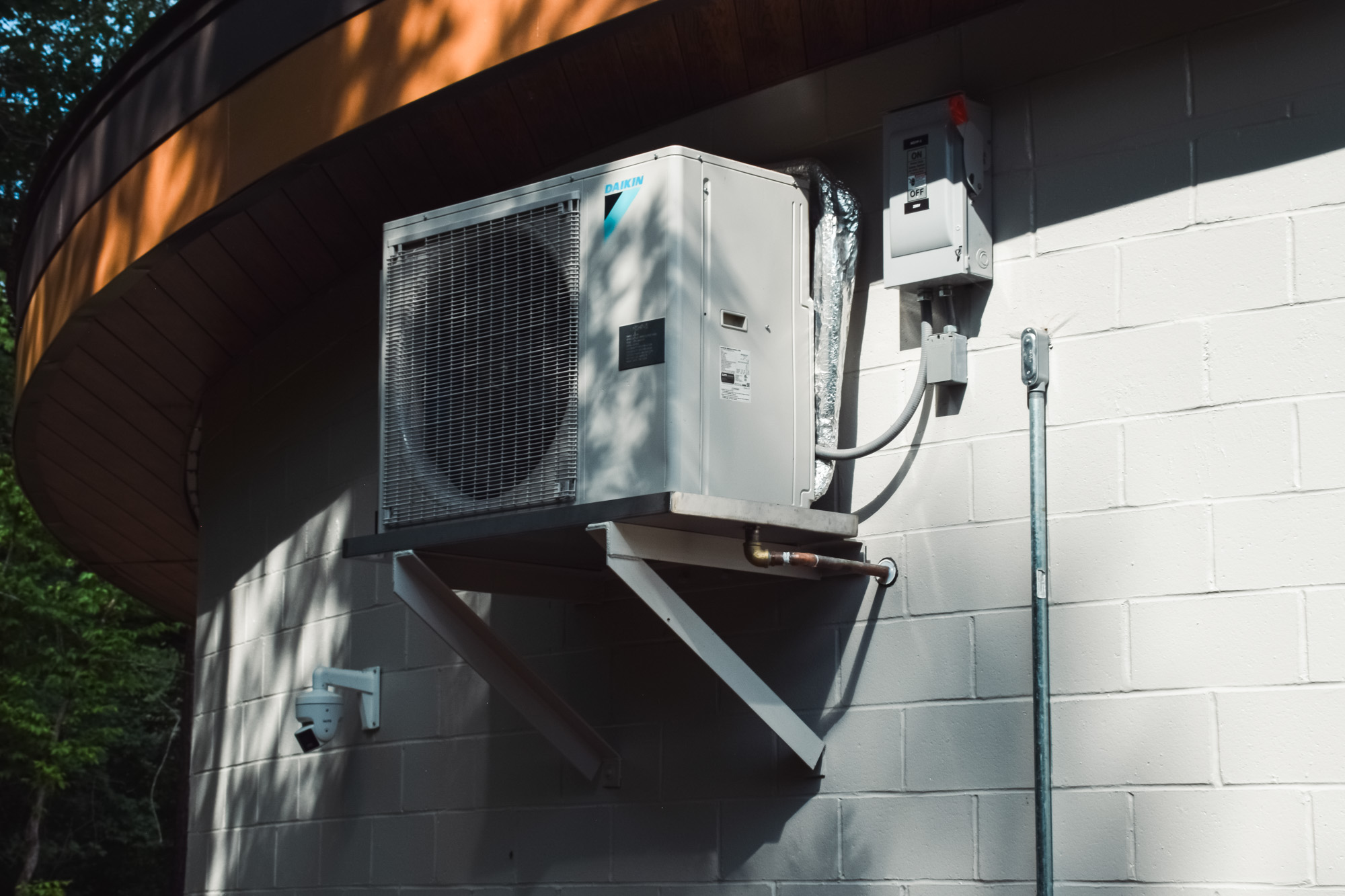

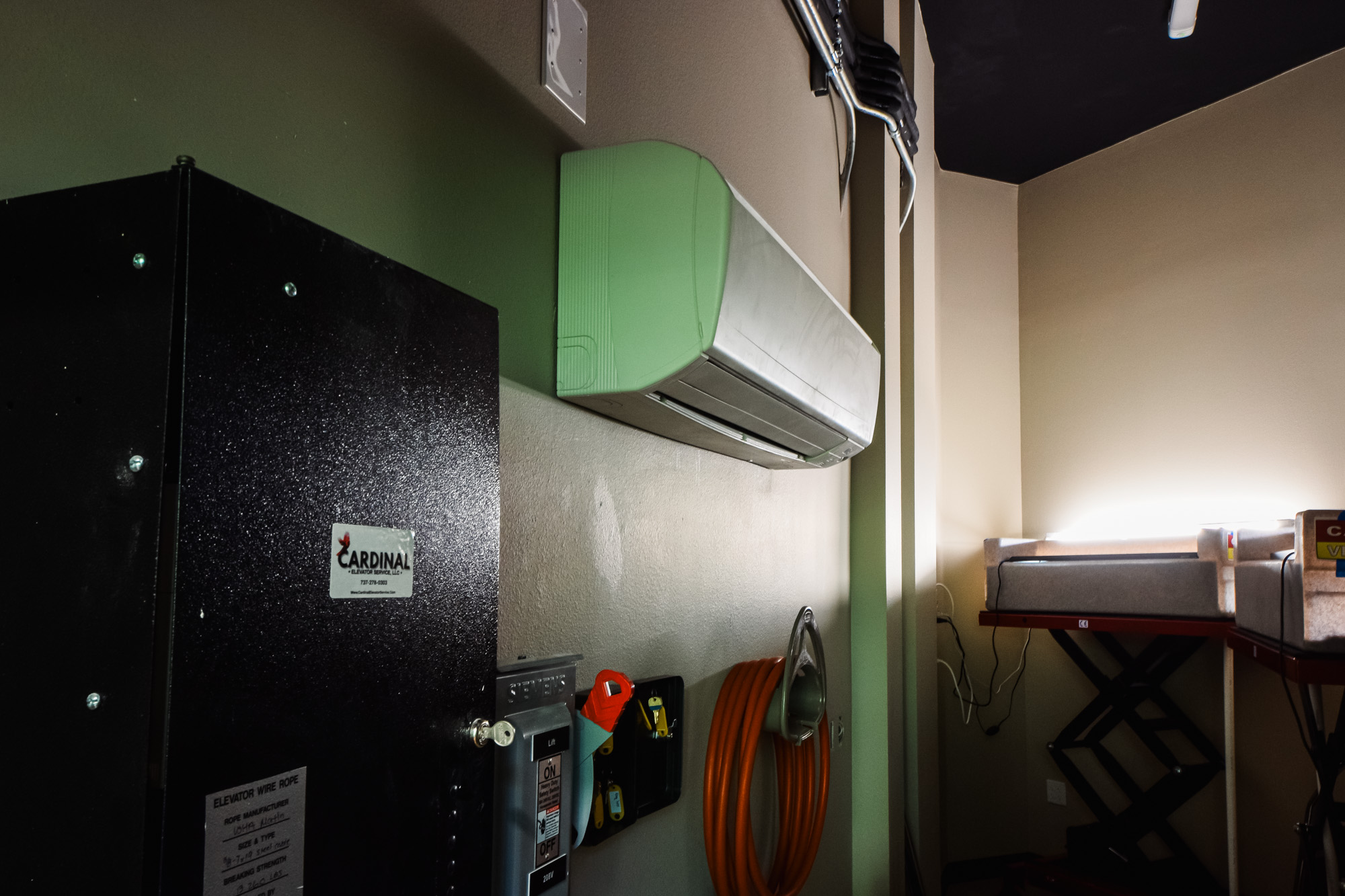

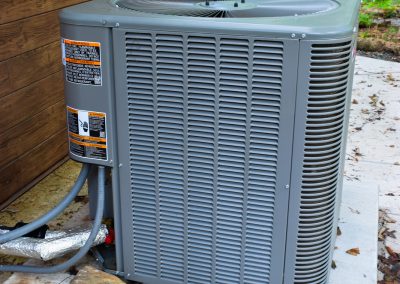

  • Six Daikin ductless heat pump split systems (minisplits/multisplits)

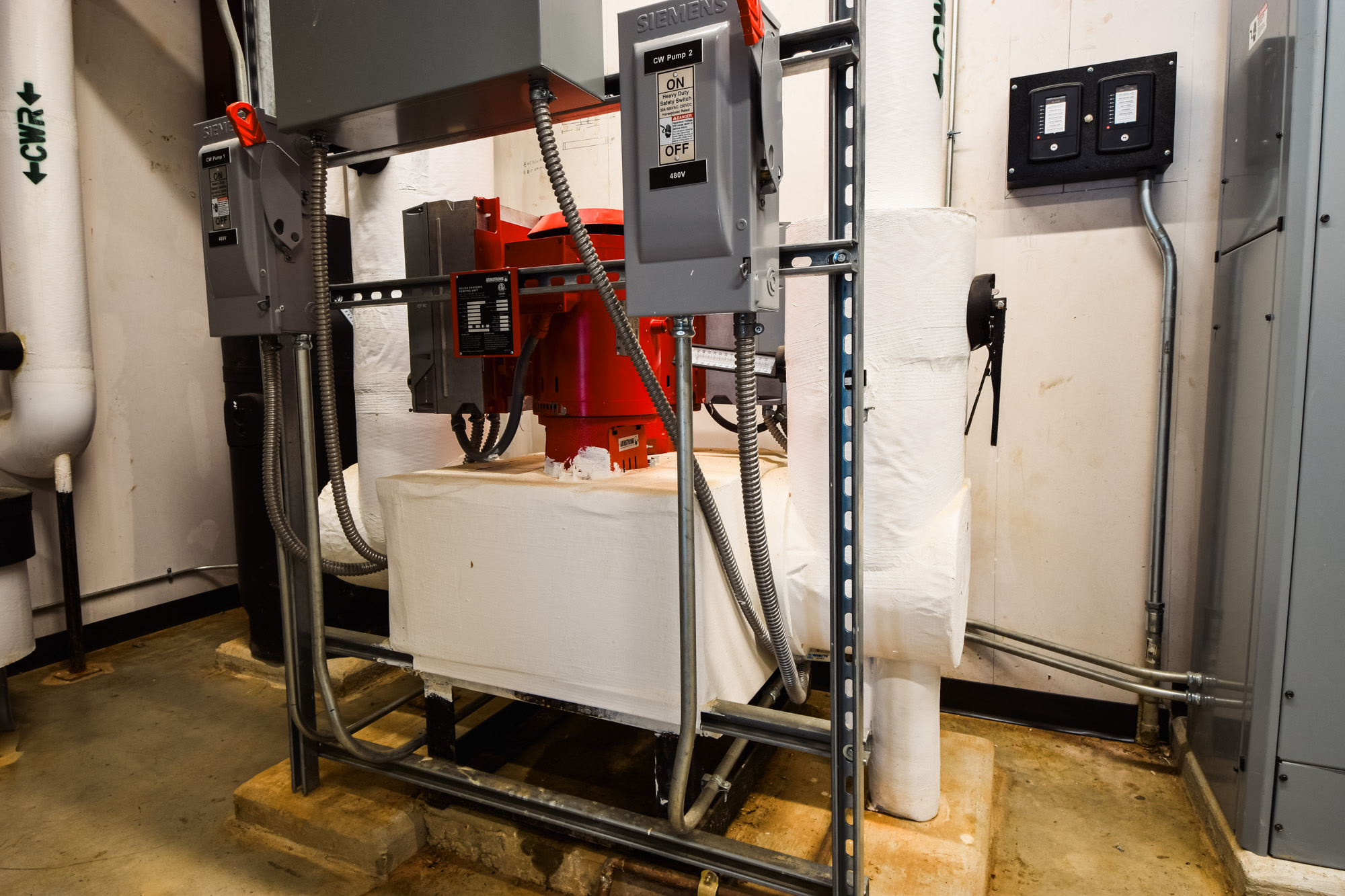

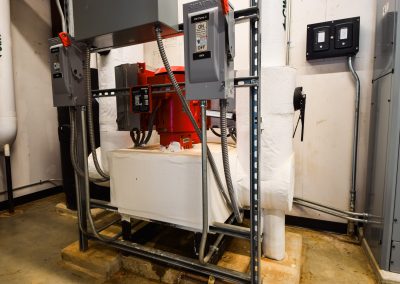

  • One Armstrong Dual-Arm chilled water circulating pump (two pumps integral to one casing)
  • Armstrong expansion tank and air separator

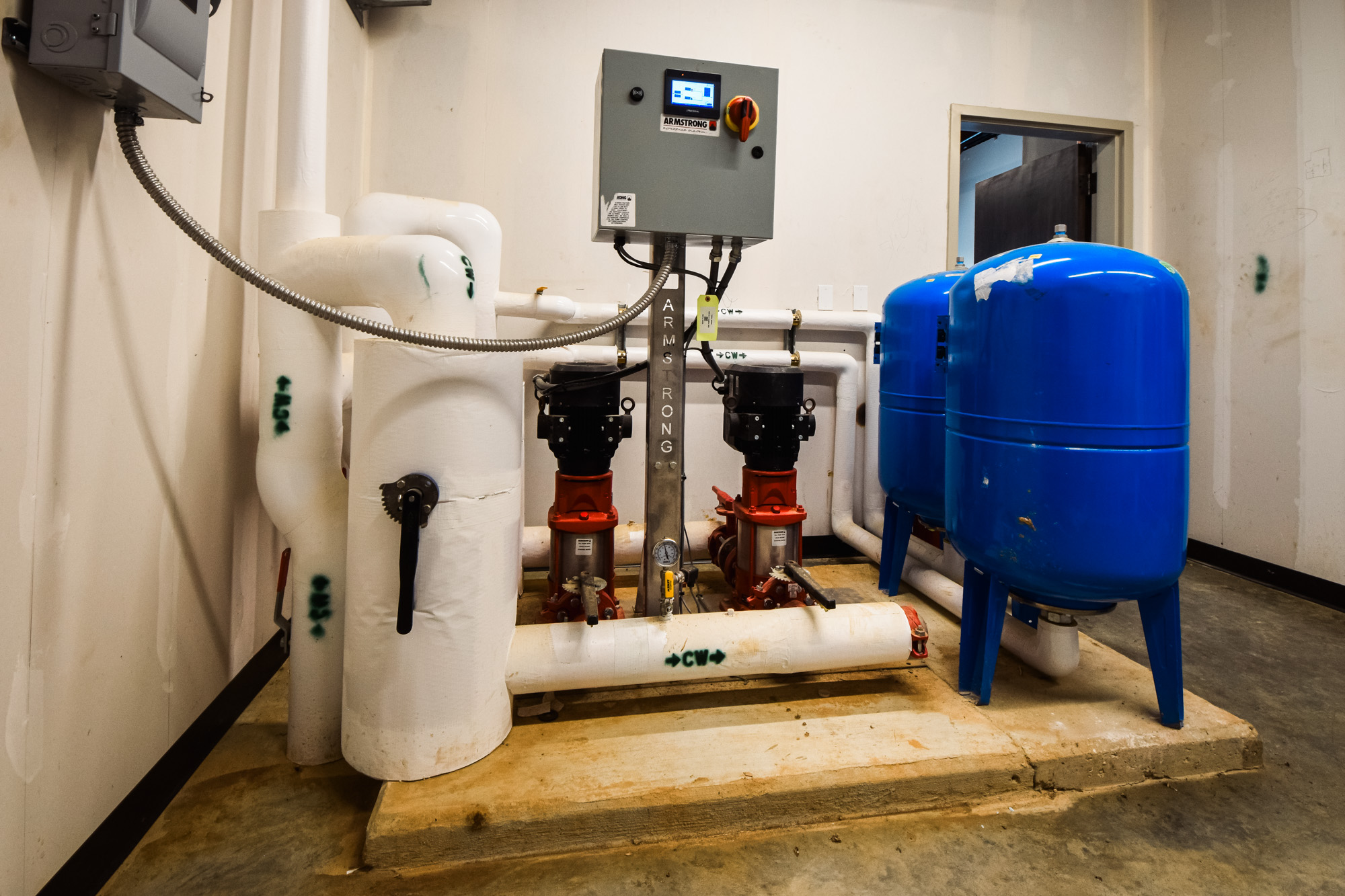

  • One Armstrong domestic water booster pump system

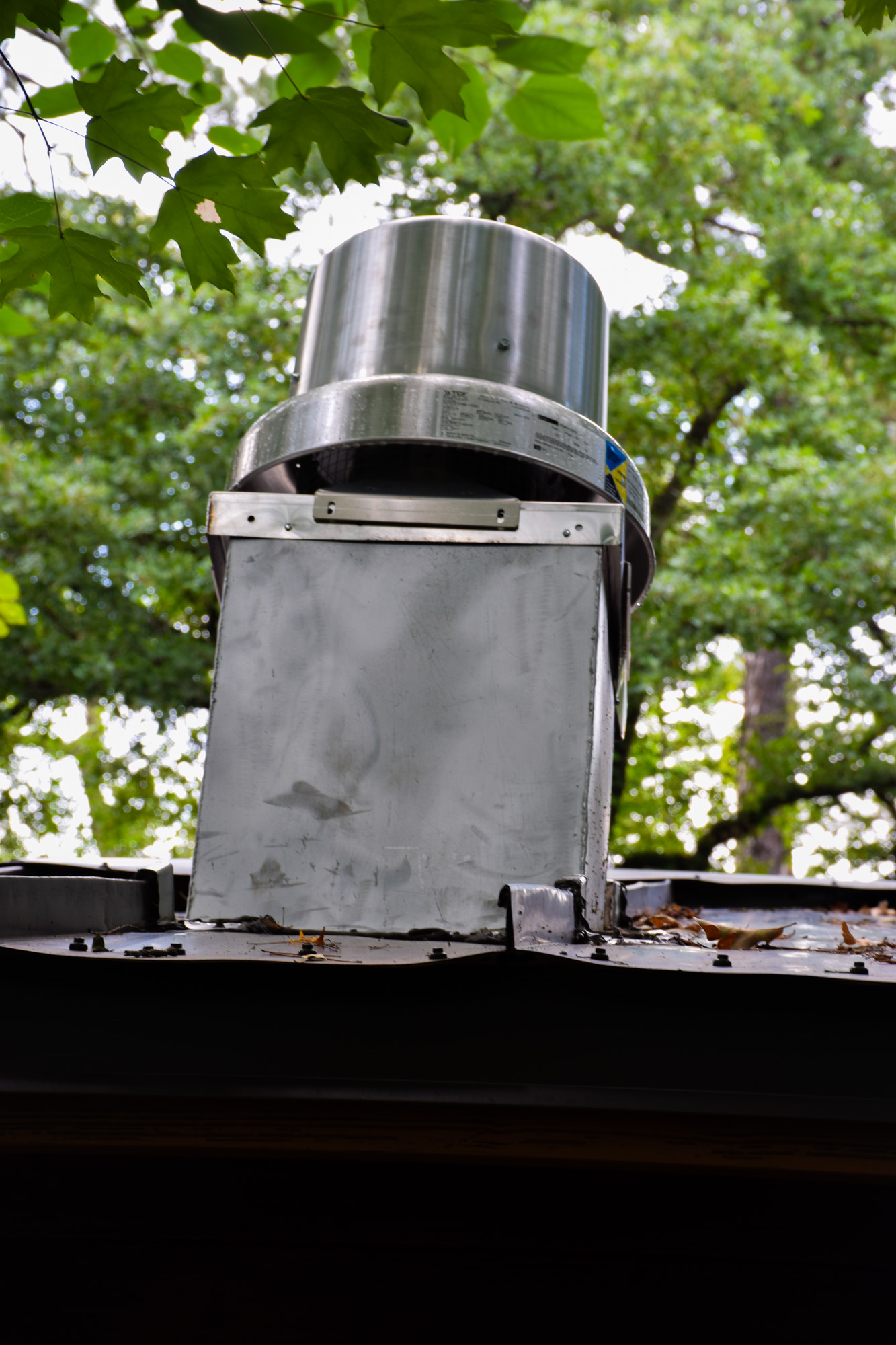

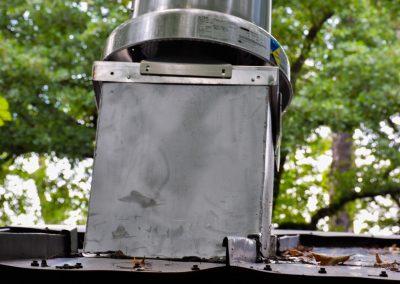

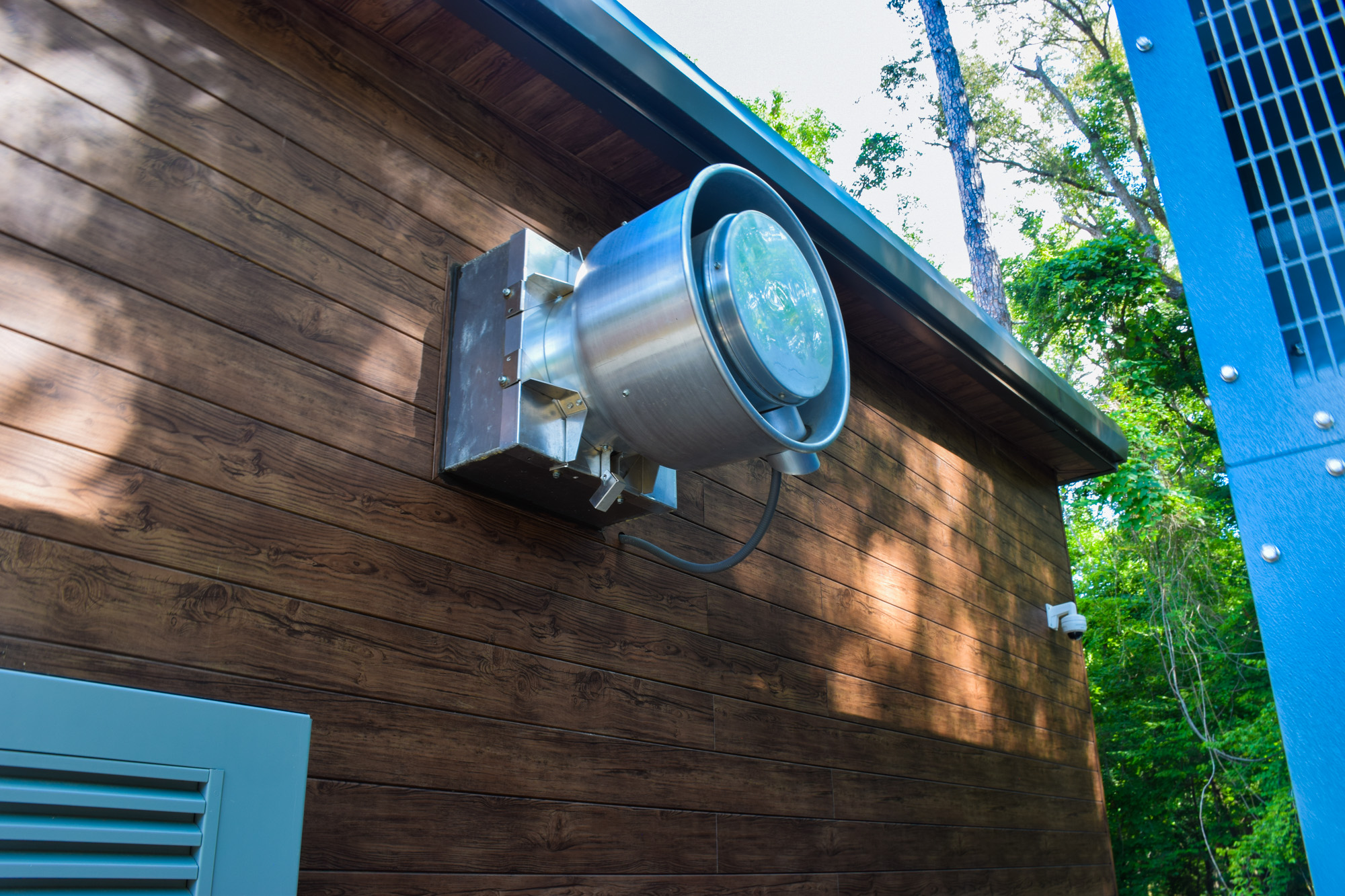

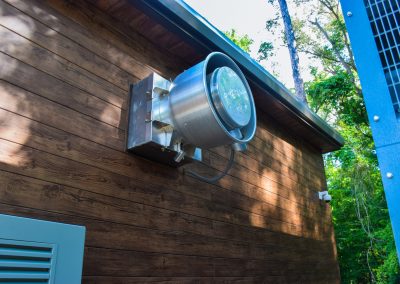

  • 13 Twin City Fans exhaust fans
  • Two Markel electric heaters
  • Other ancillary items such as:
    • Kinetics vibration isolation
    • Unisource piping flex connectors
    • IMI Flow Design coil piping packages
